Standard LED Module
Product Specification:
- Beam characteristic 120°
- Ambient temperature range -25 ... +45 °C
- tp rated 65 °C
- tc 85 °C
- Risk group (IEC 62471) 0
- Type of protection IP00
- Life-time up to 50,000 h
- Imax 375 mA
- Typ. forward current 280 mA
- Min. forward voltage at tp = 65 °C 67.2 V
- Max. forward voltage at tp = 25 °C 81.6 V
- Typ. power con¬sump¬tion at tp = 65 °C 20 W
- Typ. luminous flux at tp = 25 °C 2640 Lm(According to CCT)
- Color ren¬der¬ing in¬dex CRI > 80
- Small color tolerance (MacAdam 3)
- guarantee 5 year

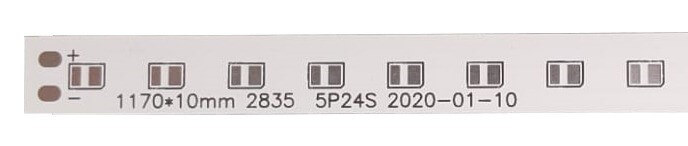

- Module dimension 1170*10*1.0mm
- Simple installation (e.g. screws)
- thermal conductivity 1.0W/m*k
- LED Typ SMD 2835
- CCT (K) 2200, 2500, 2700, 3000, 4000, 5000, 5700, 6000, 6500
